usb数据线颜色及usb数据线接法图解和USB接口引脚接线定义

2021-05-22 25014 24

USB接口的物理上的对应的引脚和对应含义等.
对于四线制的USB,即USB1.0,USB1.1,USB2.0.

USB1.x/2.0接口的引脚定义及颜色

引脚 名称 电缆颜色 描述
1 VBUS Red +5 V,电源
2 D− White Data −,数据线
3 D+ Green Data +,数据线
4 GND Black Ground,接地

USB3.0接口及以上的引脚定义及颜色

引脚 A型连接器 B型连接器 线缆颜色 描述
1 VBUS 红色 红色 供电
2 D- D- 白色 2.0数据差分对
3 D+ D+ 绿色 2.0数据差分对
4 GND GND 黑色 电源地
5 StdA_SSRX− StdB_SSTX− 蓝色 高速数据差分对-接收
6 StdA_SSRX+ StdB_SSTX+ 黄色 高速数据差分对-接收
7 GND_DRAIN N/A N/A 信号地
8 StdA_SSTX− StdB_SSRX− 紫色 高速数据差分对-发送
9 StdA_SSTX+ StdB_SSRX+ 橙色 高速数据差分对-发送

Type-A/TYPE-B接口引脚定义及颜色

引脚 名称 线缆颜色 描述
1 VBUS 红色 或者 / 橙色 +5V供电
2 D- 白色 或者 / 金色 差分数据-
3 D+ 绿色 / 绿色 差分数据+
4 GND 黑色 / 蓝色

Mini/Micro-A/B 引脚定义及颜色

Mini USB除了第4针外,其他接口功能皆与标准USB相同。第4针成为ID,地线在mini-A上连接到第5针,在mini-B可以悬空亦可连接到第5针。

引脚 名称 线缆颜色 描述
1 VBUS 红色 +5V供电
2 D- 白色 差分数据-
3 D+ 绿色 差分数据+
4 ID N/A 区分另一端接口类型 A 接口(主机):接地 B接口(设备):不连接
5 GND 黑色

Type-C接口接线定义

Type C接线定义

TYPE类型接口定义:

1610465230575 1610465241705
1610465152145 1610465168391

1610465457452

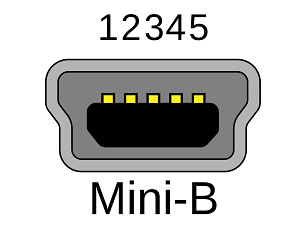

Mini类型接口定义

1610465350140 1610465375598 1610465361755

Micro类型

1610465404457 1610465411773 1610465423545

1610465436672
